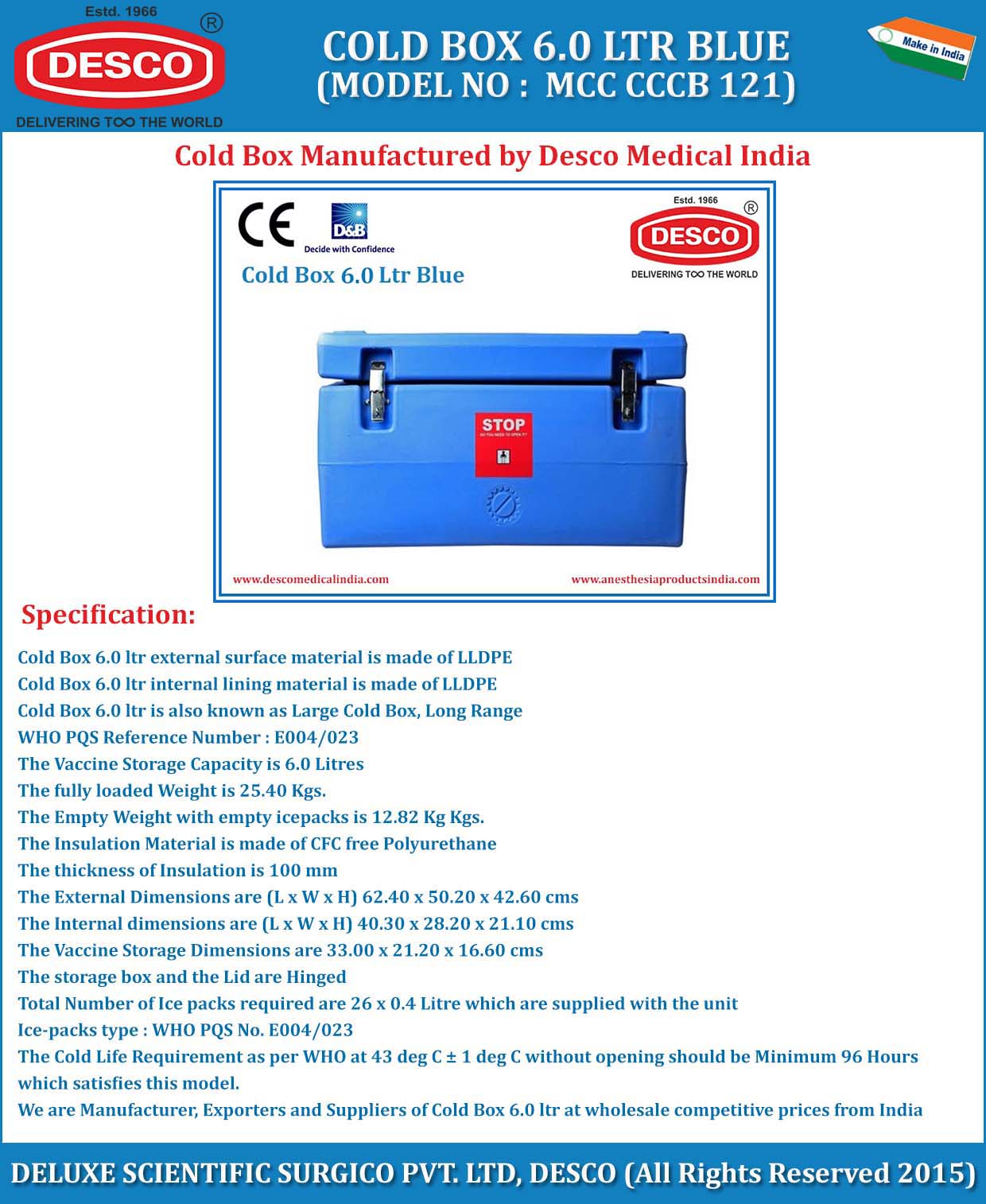

Cold Box 6.0 ltr external surface material is made of LLDPE
Cold Box 6.0 ltr internal lining material is made of LLDPE
Cold Box 6.0 ltr is also known as Cold Box, Long Range
WHO PQS Reference Number : PQS E-004/023
The Vaccine Storage Capacity is 6.0 Litres
The fully loaded Weight is 25.40 Kgs.
The Empty Weight with empty icepacks is 12.82 Kgs.
The Insulation Material is made of CFC free Polyurethane
The thickness of Insulation is 100 mm
The External Dimensions are (L x W x H) 62.40 x 50.20 x 42.60 cms
The Internal dimensions are (L x W x H) 40.30 x 28.20 x 21.10 cms
The Vaccine Storage Dimensions are (L x W x H) 33 x 21.20 x 16.60 cms
The storage box and the Lid are Hinged
Total Number of Ice packs required are 26 which are supplied with the unit
Ice-packs type : E05/IP01.1
The Volume of each Icepack : 0.4 Litres
The Cold Life Requirement as per WHO at 43 deg C ± 1 deg C without opening should be Minimum 96 Hours and the Actual Cold Life without opening 43 deg C ± 1 deg C as Tested by WHO approved Testing Lab, PSB, Singapore is 132.18 Hours
Warm Life at -20oC is 48.41 Hours
Cool Life at +43oC is 29.47 Hours
We are Manufacturer, Exporters and Suppliers of Cold Box 6.0 ltr at wholesale competitive prices from India.
