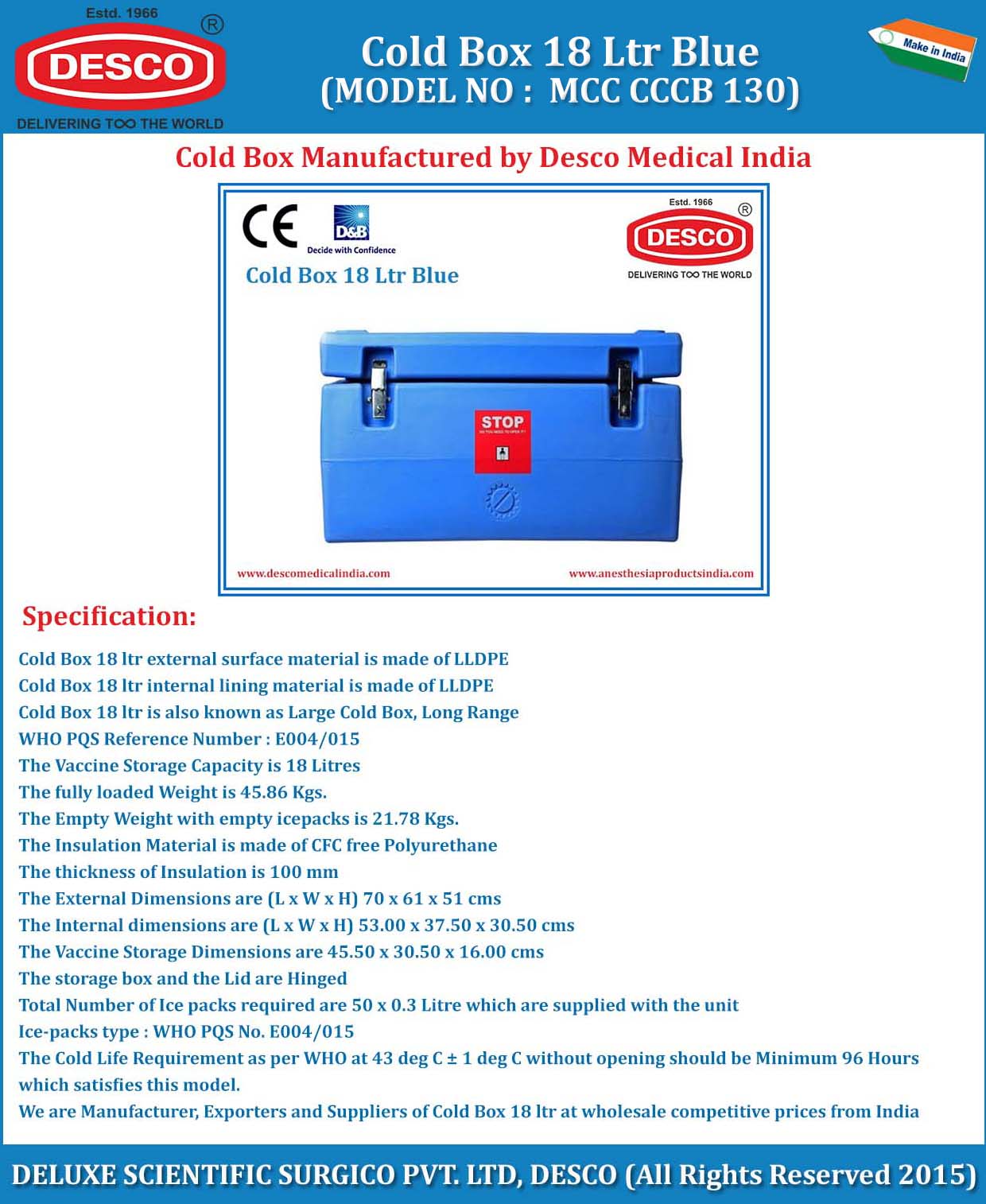

Cold Box 18 ltr external surface material is made of LLDPE
Cold Box 18 ltr internal lining material is made of LLDPE
Cold Box 18 ltr is also known as Cold Box, Long Range
WHO PQS Reference Number : PQS E-004/015
The Vaccine Storage Capacity is 18 Litres
The fully loaded Weight is 45.86 Kgs.
The Empty Weight with empty icepacks is 21.78 Kgs.
The Insulation Material is made of CFC free Polyurethane
The thickness of Insulation is 100 mm
The External Dimensions are (L x W x H) 70.00 x 61.00 x 51.00 cms
The Internal dimensions are (L x W x H) 53.00 x 37.50 x 30.50 cms
The Vaccine Storage Dimensions are (L x W x H) 45.50 x 30.50 x 16.00 cms
The storage box and the Lid are Hinged
Total Number of Ice packs required are 50 which are supplied with the unit
Ice-packs type : E05/IP01.1
The Volume of each Icepack : 0.3 Litres
The Cold Life Requirement as per WHO at 43 deg C ± 1 deg C without opening should be Minimum 96 Hours and the Actual Cold Life without opening 43 deg C ± 1 deg C as Tested by WHO approved Testing Lab, PSB, Singapore is 126.32 Hours
Warm Life at -20oC is 44.48 Hours
Cool Life at +43oC is 28.05 Hours
We are Manufacturer, Exporters and Suppliers of Cold Box 18 ltr at wholesale competitive prices from India.
